RF3.1

RF3.1

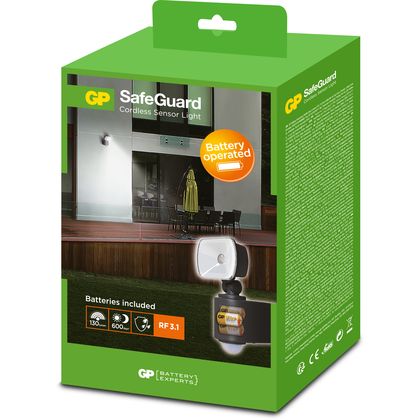

GP LA SAFEGUARD RF3.1 (3*GP14AU)

Colour Temperatures:

2200K
2700K
3000K
4000K
6500K

Series SafeGuard RF3.1 Description LED outdoor automotive motion sensor security light, one headlamp Electrical characteristics Input Voltage 4.5VDC (3 x 1.5V C batteries) Operating Voltage 4.5V Standby Current < 100μA Lamp current 350mA Battery Operation 600 days* (Based on 5 operation per day in Auto Mode) Lighting characteristics CCT 4500K-5500K luminous flux / Intensity ≥ 130 lm LED Type 1 x SMD LED Light modes OFF / ON / AUTO Light duration in auto mode 10 s ±3 s Sensors characteristics Sensor Photo sensors & PIR Sensors Sensor Detection Range 8M, 110° Lux Detection Frequency 3 sec per detecion, 1 sec between detection Trigger Lux Value 0-35 Lux Adjustable Physical Characteristics Operating Temperature -20°C to 50°C Storage Temperature -20°C to 50°C Dimension 96.0 (L) x 201.1 (H) x 129.9 (D) mm Weight 276 g Housing Material PC IP Rating IP55

Technical Specification:
•Nominal / Rated Luminous Flux(lm): 130
•Color Temperature: Cool White
•Nominal Correlated Color Temperature: 4000K
•Dimension(W * L): 201.1 * 96 * 129.9 mm
