RF3.1H

RF3.1H

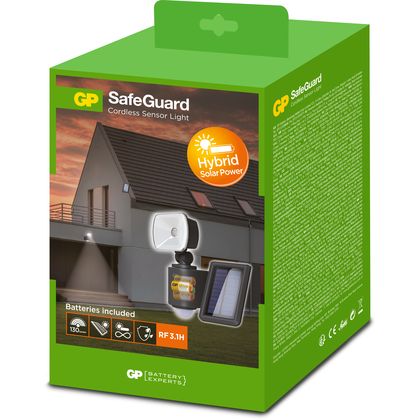

GP LA SAFEGUARD HYBRID RF3.1H (3*GP14AU / 1*Li-ion 18650)

Colour Temperatures:

2200K
2700K
3000K
4000K
6500K

Series SafeGuard RF3.1H Description LED outdoor automotive motion sensor hybrid powered security light, one headlamp Electrical characteristics Input Voltage 4.5VDC (3 x 1.5V C batteries), 3.7VDC (1 x 18650 Li-ion battery) Operating Voltage 4.5V, 3.7V Standby Current ≤0.1mA Lamp current 650mA Solar panel 5.4V/143mA, Cable length 3m Battery Run Time (Alkaline Battery) 600 days* (Based on 5 operation per day in Auto Mode) Battery Run Time (Rechargeable Battery) 200 days* (Based on 5 operation per day in Auto Mode) Lighting characteristics CCT 4500K-5500K luminous flux / Intensity ≥ 130 lm LED Type 1 x SMD LED Light modes OFF / ON / AUTO Light duration in auto mode 10s ± 3s Sensors characteristics Sensor Photo sensors & PIR Sensors Sensor Detection Range 8M, 110° Lux Detection Frequency 3 sec per detecion, 1 sec between detection Trigger Lux Value 2-35 Lux Adjustable Physical Characteristics Operating Temperature -20°C to 50°C Storage Temperature -20°C to 50°C Dimension 96.0 (L) x 203.1 (H) x 131.2 (D) mm Weight - Main Body 276g Weight - Solar Panel 175g Housing Material PC IP Rating IP55

Technical Specification:
•Nominal / Rated Luminous Flux(lm): 130
•Color Temperature: Cool White
•Nominal Correlated Color Temperature: 4000K
•Dimension(W * L): 201.1 * 96 * 129.9 mm
